AGU994157 - PRO-STANCE

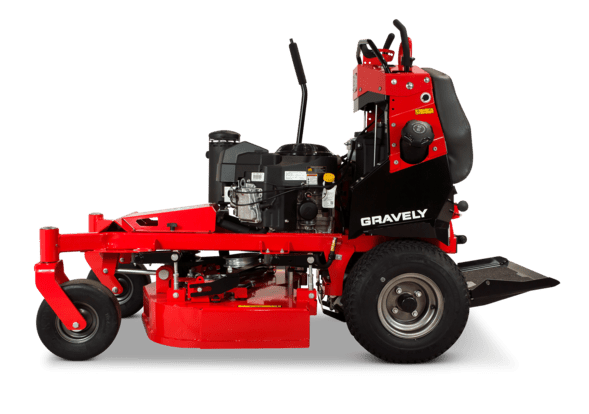

Gravely Pro-Stance 32" Stand-On Zero-Turn Mower

Step up to greatness.

$15,999.00
(inc. GST)

This product is not available for Click & Collect. Please contact your local dealer for stock availability.

There are no reviews for this product yet.

Write a review

Stand-On Mowers, rugged, durable, and built to deliver an exceptional cut. Just like all Gravely commercial units, stand-on mowers give you additional flexibility. The perfect blend of power and performance for environments that demand quick
on-and-off versatility. The deck adjusts easily, and the suspension platform absorbs vibration for all-day comfort.

Kawasaki 18.5 hp FS600V premium and commercial grade V-twin engine.
Operator comfort features exceptional operator positioning for all-day comfort.
Added efficiency – reduced complexity gives users the freedom to make critical adjustments in just minutes.
Adjustable Cruise Bar - allows the operator to limit and expand the unit’s maximum speed in tight working environments .
Deck height adjustment - the dual height-adjustment system was designed with both a traditional hand lever and a foot lever to lift and adjust the deck. It’s perfect for smaller operators who may struggle with traditional hand lever lifts.
X-FACTOR® 3 deck - the deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
Compact stance perfect for tight spaces.
Offers 15 cutting positions, ranging from 38.1 mm - 127 mm.
Shock-absorbed operator platform which responds to driver’s weight.
Heavy-duty fabricated frame.

Warranty Information

Domestic Warranty
5 Year / 1000 Hour Domestic Warranty
Commercial Warranty
5 Year / 1000 Hour Commercial Warranty

Miscellaneous

Blade(s)
2

Dimension Specs

Dry Weight
340.2 kg
Height
1219 mm
Width
851 mm with chute up
Overall Length
1511 mm

Zero Turn Mower Specs

Ground Speed - Forward
Up To 12.8 km/h
Brakes
Hand-operated Park brake
Construction
Frame 1" x 3" STEEL Tubular frame welded
ROPS
No
Controls
Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand lever operated hand brake
Deck System
4 Point Lift Fabricated
Deck Lift
Dual deck height adjustment
Deck Construction
Fabricated 7 Gauge
Blade Tip Speed
18,220 FPM
Blade Drive
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles
Forged Aluminium with sealed ball bearings
Drive System
Hydro-Gear® ZT-3100 Transaxle
Discharge Chute
High density, rubberised
Steering
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls

Engine and Fuel Specs

Engine
Kawasaki FS600V
Type
Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc)
603 cc
Horsepower
18.5 hp
Cooling
Air cooled. Fly-wheel fan
Fuel
Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter
Replaceable, automotive-type
Oil Filter
Spin-on engine oil filter / Total oil capacity 1.7 litres with filter
Air Filter
Dual element with reinforced primary filter
Fuel Capacity
22.6 L
Governor
Mechanical

Hydrostatic Drive System Specs

Hydrostatic Drive System
Dual hydrostatic
Drive Cooling
Transmission mounted fans
Drive Filter
Yes
Pumps
Hydro-Gear ZT-3100

Cutting Dimensions

Cutting Widths
32" Cut Side Discharge
Cutting Height(s)
38 mm - 127 mm
