AGU992531 - PRO-TURN 500

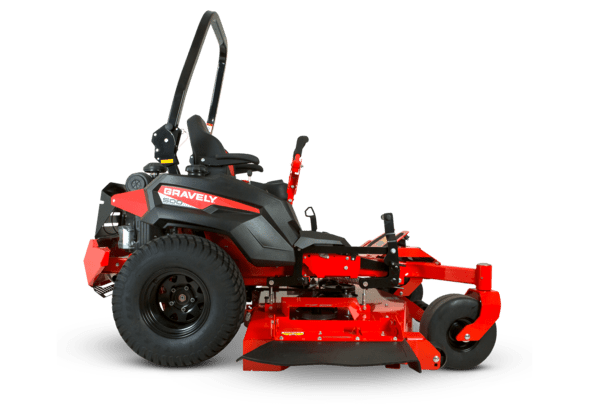

Gravely Pro-Turn 572 EFI Zero-Turn Mowers

Name: Gravely Pro-Turn 572 EFI Zero-Turn Mowers
Brand: Gravely Australia
SKU: AGU992531
Price: 29999 AUD
Availability: InStoreOnly

Land Owner

Professional

A True Commercial Quality Mower Built for Professionals

$29,999.00

(inc. GST)

Purchase Online

This product is not available for online purchase. Please contact your local dealer for stock availability.

Find a dealer

Land Owner

Professional

There are no reviews for this product yet.

Write a review

This is the Pro-Turn 500!!

A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the PRO-TURN-500 the better choice.

A premium quality 38.5 hp Kawasaki FX1000 EFI V-twin engine featuring a multi-stage remote canister heavy duty air filter system and cast-iron cylinder liners.

PARKER HTG Transaxles 16cc pumps.

Air Ride Suspension seat is adjustable and has the new addition of a low-profile seat mechanism for added comfort.

Fully welded tubular frame. One glance and you can see its strength and ruggedness. Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement. Includes a limited lifetime warranty.

Offers 19 cutting positions, ranging from 25 mm – 140 mm, to make your lawn look its best.

Foot-Operated deck lift.

X-FACTOR® 3 deck The deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.

Forged Aluminium cutter spindles with sealed ball bearings.

Warranty Information

Domestic Warranty

5 Year / 1500 Hour Domestic Warranty

Commercial Warranty

5 Year / 1500 Hour Commercial Warranty

Hire/Rental Warranty

90 Day Hire / Rental Warranty

Miscellaneous

Blade(s)

3 x Bar blades

Dimension Specs

Dry Weight

716.6 kg

Height

1930 mm ROPS up, 1214 mm ROPS down

Width

1905 mm With chute up

Overall Length

2133 mm

Zero Turn Mower Specs

Ground Speed - Forward

Up To 24.1 km/h

Ground Speed - Reverse

Up to 9.6 km/h

Brakes

Hand brake

Seat

High back comfort with Air Ride suspension and padded armrests

Construction

STEEL Tubular frame welded

Hour Meter

Standard

ROPS

Foldable ROPS Standard

Controls

Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes

Cup Holder

Yes

Deck System

X-Factor® 3 Fabricated

Deck Lift

Foot-operated

Deck Construction

Fabricated 7 Gauge w' 1/4" Spindle Reinforcement

Blade Tip Speed

18000 FPM

Blade Drive

V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life

Spindles

Forged Aluminium with sealed ball bearings

Drive System

Parker HTG 16cc Dual Hydrostatic Transmission

Discharge Chute

High density, rubberised

Steering

Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.

Engine and Fuel Specs

Engine

Kawasaki FX1000V EFI

Type

Air cooled, 90-degree V-twin, EFI engine

Engine (cc)

999 cc

Horsepower

38.5 hp

Cooling

Air cooled flywheel fan

Fuel

Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)

Fuel Filter

Replaceable, automotive-type

Oil Filter

Spin-on engine oil filter / Total oil capacity 1.9 litres with filter

Air Filter

Multi-Stage remote canister heavy duty air filter system

Fuel Capacity

47.3 L

Governor

EFI

Safety Features

Operator presence system connected to clutch, seat, and park brakes

Hydrostatic Drive System Specs

Drive Cooling

Transmission mounted fans

Cutting Dimensions

Cutting Widths

72" (1828.8 mm) cut side discharge.

Cutting Height(s)

25 mm – 140 mm
